2. Managing the System

Learn how to manage your UMH instance with the Management Console.

In this chapter, you will learn how to monitor, manage and configure your UMH instance with the Management Console.

At this stage, you should have already installed the UMH on your device. If you have not done so, please follow the steps in the Installation chapter first.

A Few Words About the Communication

Now that you have connected a UMH instance to the Management Console, you might be curious about how the Management Console communicates with the instance.

The Management Companion, serving as an agent within each UMH instance, provides a secure link to the Management Console. It enables comprehensive and secure monitoring and management of the UMH, ensuring system health and streamlined configuration, all while acting as a vigilant watchdog over system components and connected devices.

The diagram below illustrates the communication flow between the Management Console and the instance:

Communication between the Management Console and the instance
Communication between the Management Console and the instance

For more information, visit the architecture

Overview of Your Instances

Instance overview
Instance overview

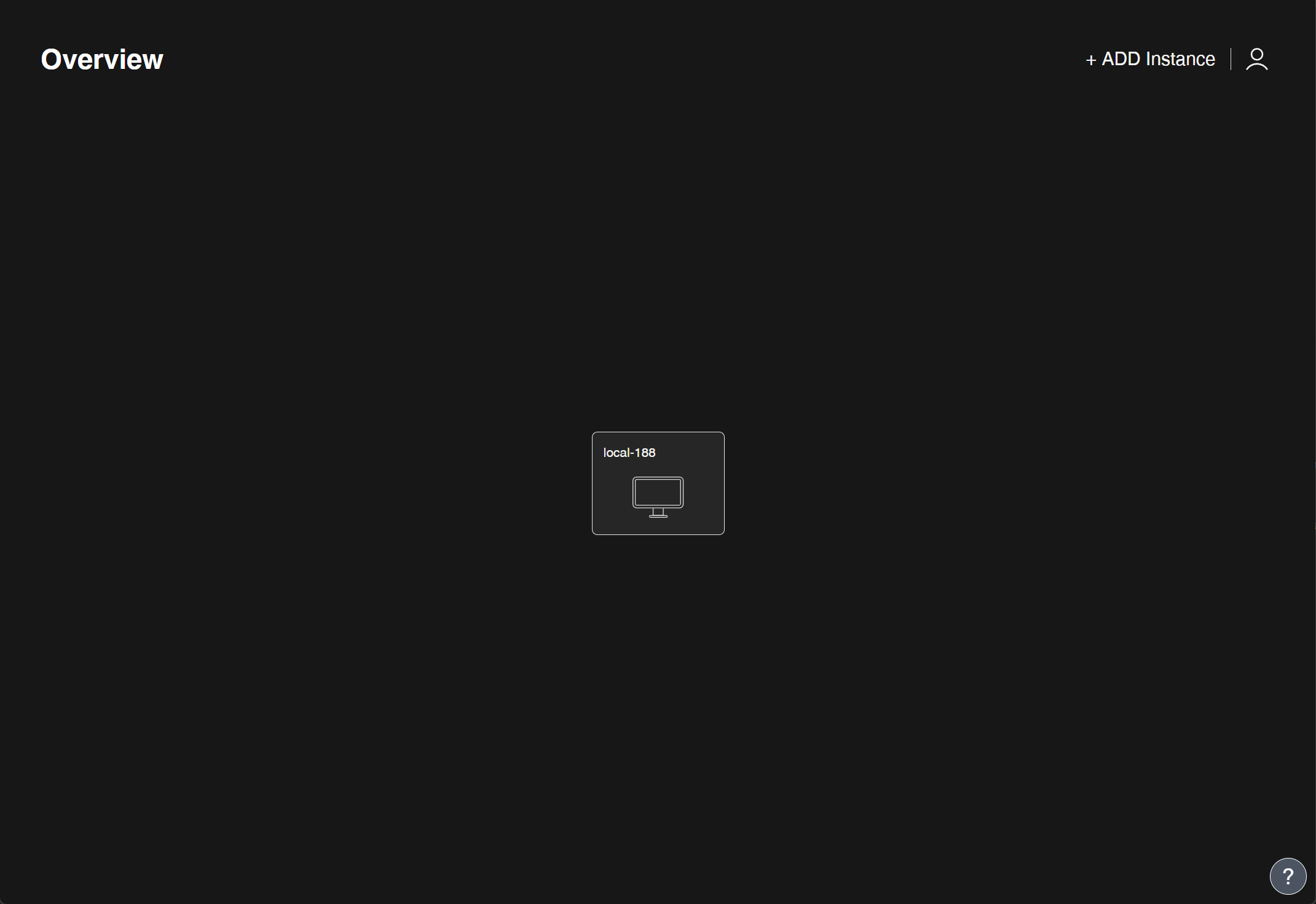

On the left side of the Management Console, you can view the list of your instances. If you have just installed the UMH, you should see only one instance in the list.

The status of your instance is indicated by color: green means everything is working properly, while yellow indicates that there may be a connection issue.

The Messages Received statistic shows the number of messages received by you from the instance since you opened the Management Console. It is usually a good indicator of the health of the connection to the Companion. If the number is not increasing for 10 seconds, the instance is considered disconnected.

Monitoring the Instance’s Status

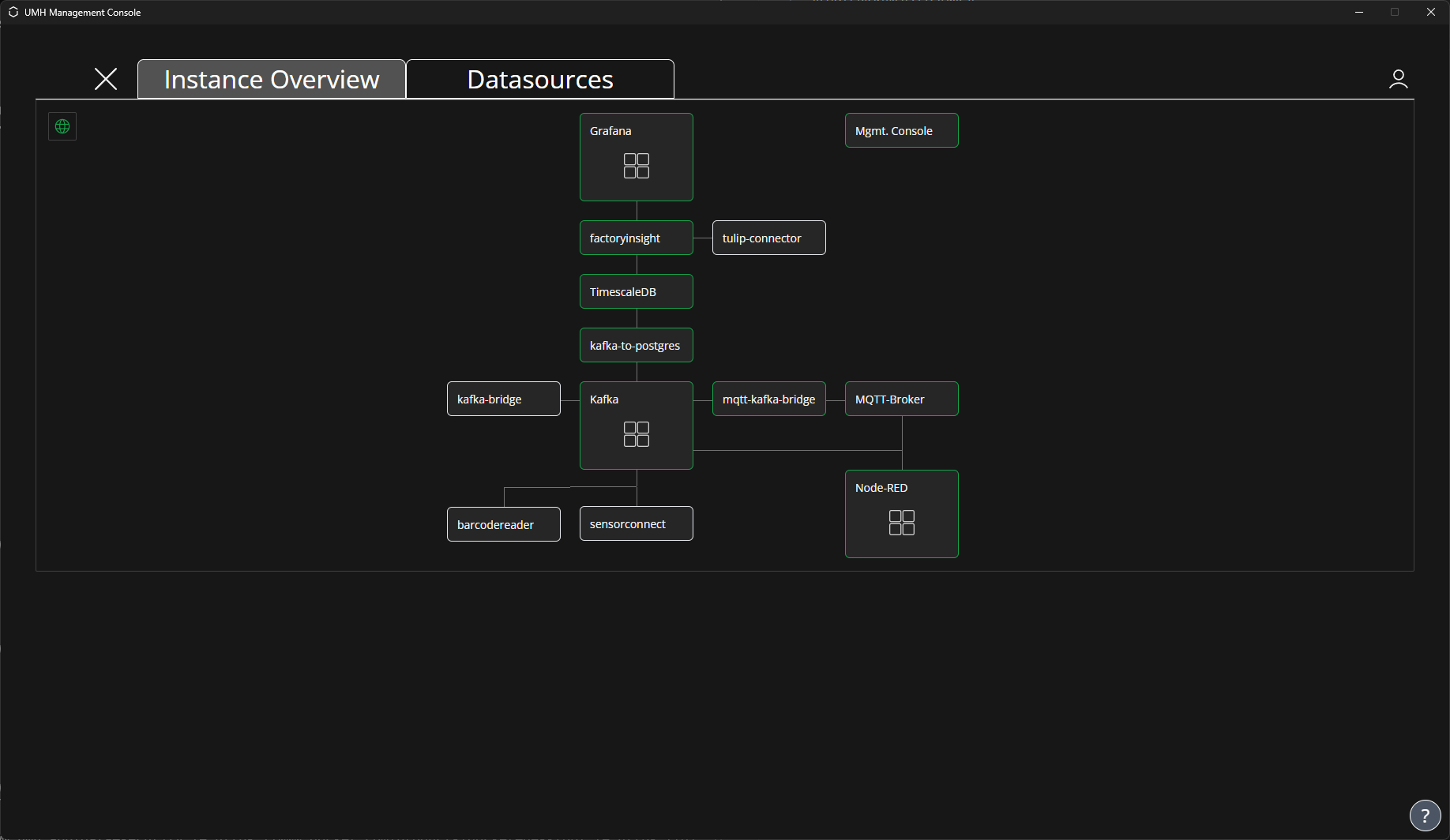

From the instance dashboard, in the overview tab, you can view the status of your instance. There are multiple interfaces that display the status of each component of the system.

Modules

A Module refers to a group of workloads in the United Manufacturing Hub responsible for specific tasks. For example, the Historian & Analytics module represents the microservices, storage, and connections that are responsible for storing and analyzing data.

In the Modules tab, you can view the status of each module. If a module is not healthy, it means that one or more of its components are not functioning properly.

System

In the System tab, you can view the resource usage of your device, as well as some system’s information.

If there is an overload on the device, you can view it here. An overloaded device is unable to handle the workload, and you should consider upgrading the device.

Connection Management

In the Connection Management tab, you can view a brief overview of the data infrastructure, which includes the rate of messages going through the message broker and the database. Any unhealthy data sources or connections are also listed here.

Kubernetes

In the Kubernetes tab, you can check for any error events in the Kubernetes cluster. Any errors suggest that the cluster is not operating correctly.

Additionally, this tab displays the version of the United Manufacturing Hub and the Management Companion currently installed on your device.

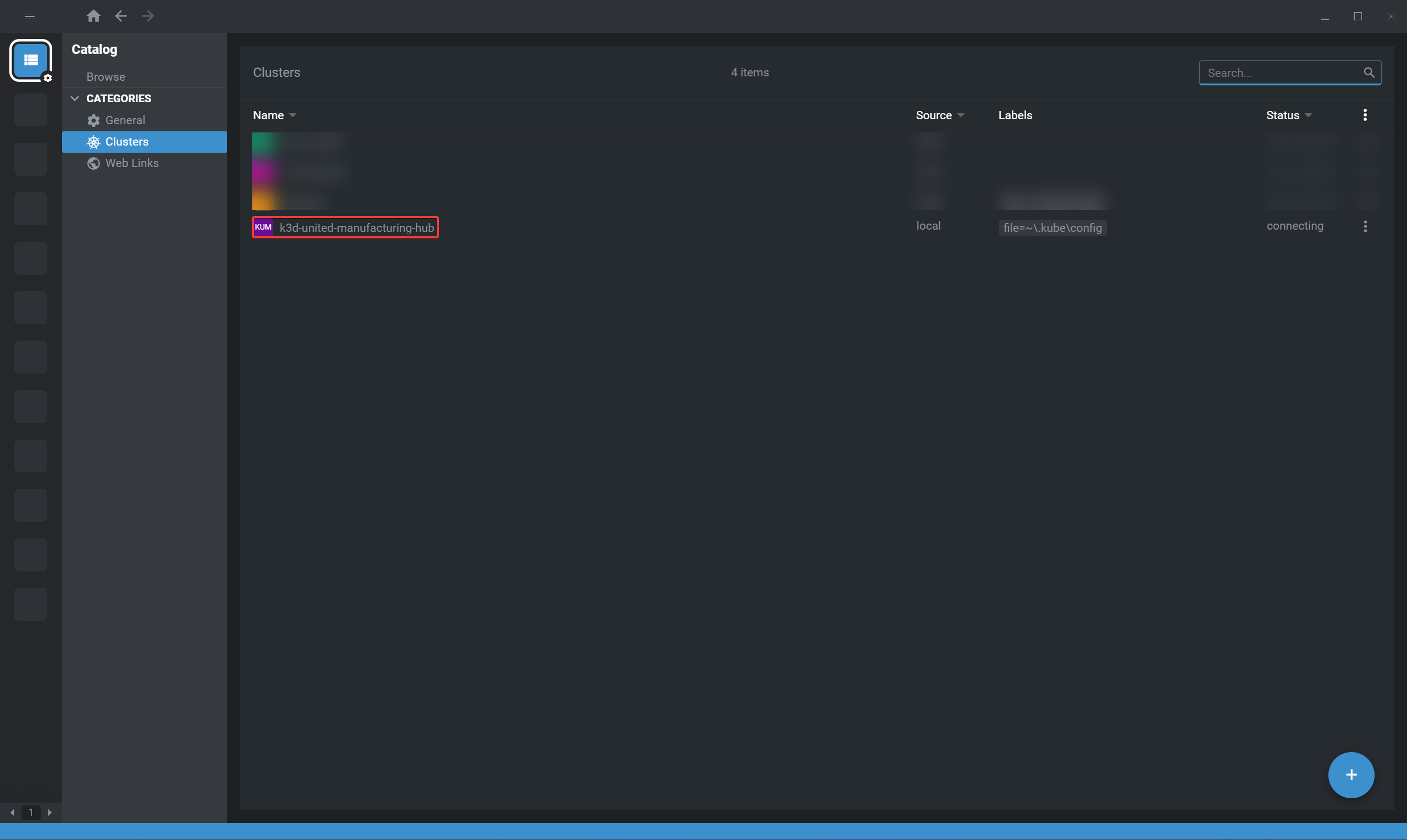

Manage the Instance

Before you begin, ensure that you are connected to the same network as the instance for accessing the various services and features discussed below.

While a graphical user interface for managing the instance is not yet available, you can still manage it via the command line.

Access the Command Line

Access your device’s shell either directly or via SSH. Note: Root user access is required for the following commands.

In UMH’s current version, add --kubeconfig /etc/rancher/k3s/k3s.yaml to each kubectl command. Root privileges are needed to access it. The installation path of kubectl might vary (e.g., /usr/local/bin/kubectl on RHEL/Linux, /opt/bin/kubectl on flatcar). These paths may not be in the root user’s PATH, so the commands below might appear complex.

Interact with the Instance

First, set this environment variable:

export KUBECONFIG=/etc/rancher/k3s/k3s.yaml

You can bypass this by adding –kubeconfig /etc/rancher/k3s/k3s.yaml to your commands. All instructions in this chapter will include this flag.

Then, to get a list of pods, run:

sudo $(which kubectl) get pods -n united-manufacturing-hub  --kubeconfig /etc/rancher/k3s/k3s.yaml

For a comprehensive list of commands, refer to the Kubernetes documentation.

Always specify the namespace when running a command by adding -n united-manufacturing-hub.

Access Node-RED

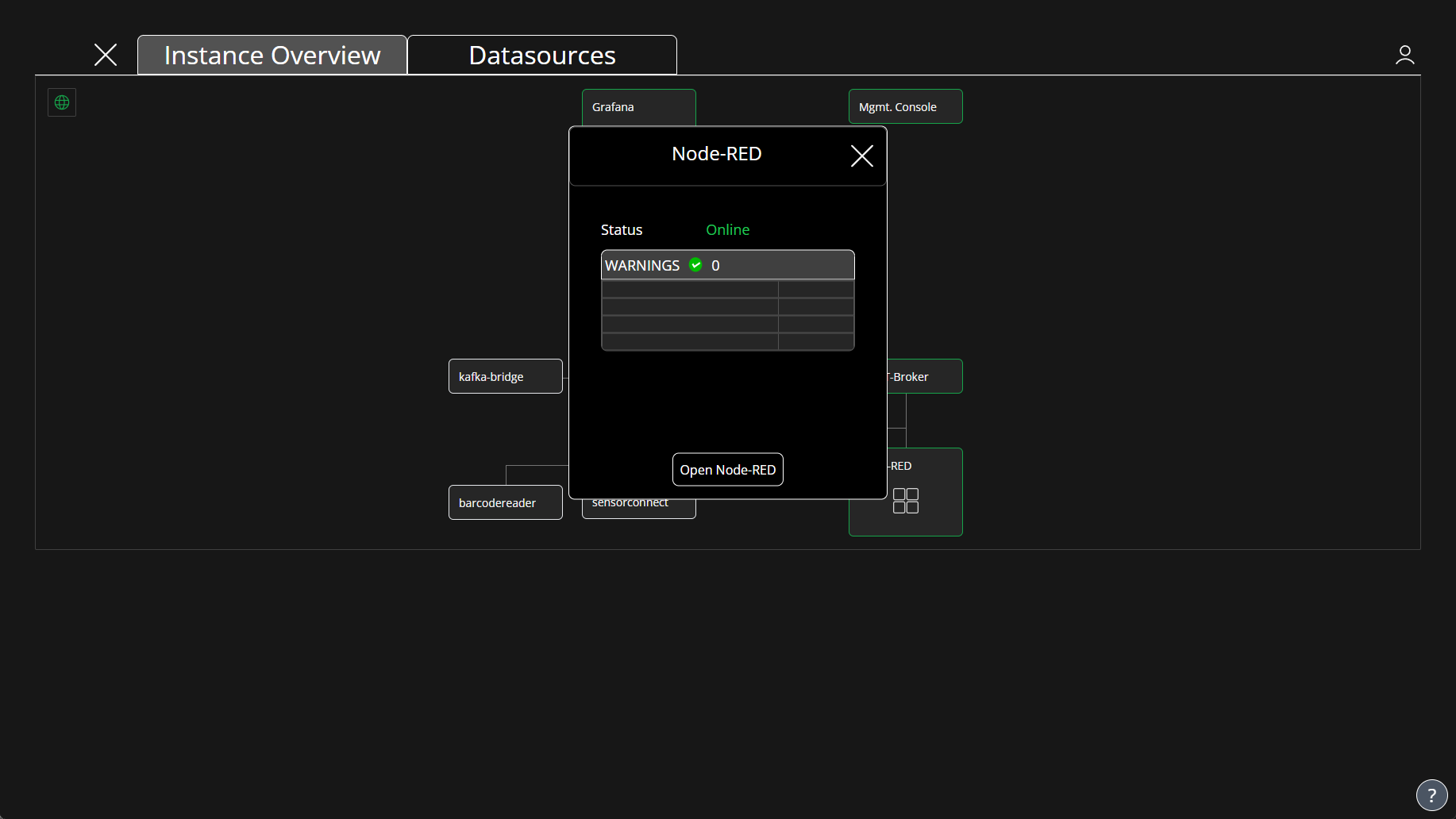

Node-RED is used in UMH for creating data flows. Access it via:

http://<instance-ip-address>:1880/nodered

Access Grafana

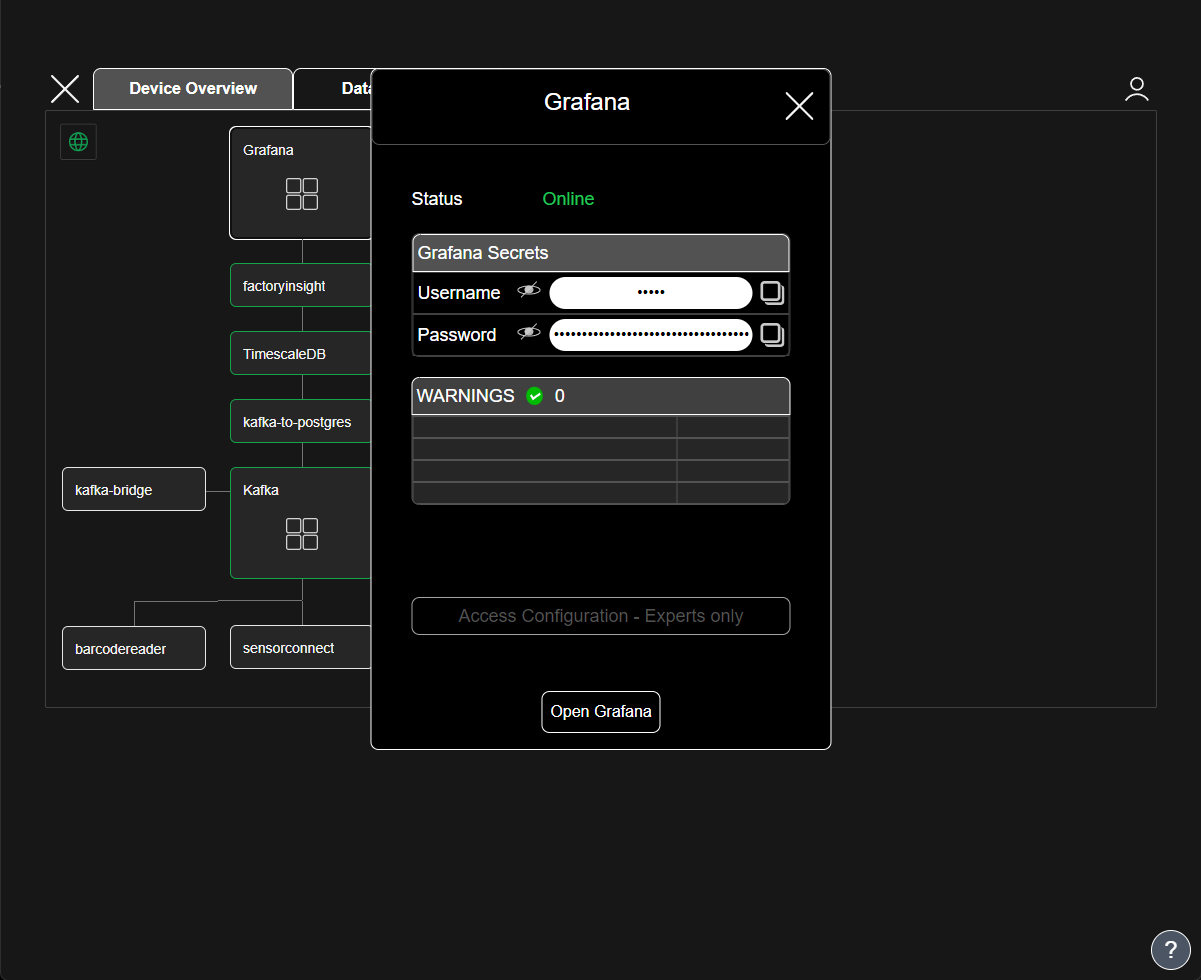

UMH uses Grafana for dashboard displays. Get your credentials:

sudo $(which kubectl) get secret grafana-secret --kubeconfig /etc/rancher/k3s/k3s.yaml -n united-manufacturing-hub -o jsonpath="{.data.adminuser}" | base64 --decode; echo
sudo $(which kubectl) get secret grafana-secret --kubeconfig /etc/rancher/k3s/k3s.yaml -n united-manufacturing-hub -o jsonpath="{.data.adminpassword}" | base64 --decode; echo

Then, access Grafana here:

http://<instance-ip-address>:8080

Use the retrieved credentials to log in.

Access the RedPanda Console

Manage the Kafka broker via the RedPanda Console:

http://<instance-ip-address>:8090

Interact with the Database

UMH uses TimescaleDB. Open a psql session:

sudo $(which kubectl) exec -it $(sudo $(which kubectl) get pods --kubeconfig /etc/rancher/k3s/k3s.yaml -n united-manufacturing-hub -l app.kubernetes.io/component=timescaledb -o jsonpath="{.items[0].metadata.name}") --kubeconfig /etc/rancher/k3s/k3s.yaml -n united-manufacturing-hub -- psql -U postgres

This command will open a psql shell connected to the default postgres database.

Run SQL queries as needed. For an overview of the database schema, refer to the Data Model documentation.

Connect MQTT to MQTT Explorer

Use MQTT Explorer for a structured overview of MQTT topics. Connect using the instance’s IP and port 1883.

Troubleshooting

Error: You must be logged in to the server while using the kubectl Command

If you encounter the error below while using the kubectl command:

E1121 13:05:52.772843  218533 memcache.go:265] couldn't get current server API group list: the server has asked for the client to provide credentials
error: You must be logged in to the server (the server has asked for the client to provide credentials)

This issue can be resolved by setting the KUBECONFIG environment variable. Run the following command:

export KUBECONFIG=/etc/rancher/k3s/k3s.yaml

Alternatively, use the --kubeconfig flag to specify the configuration file path:

sudo $(which kubectl) --kubeconfig /etc/rancher/k3s/k3s.yaml get pods -n united-manufacturing-hub

“Permission Denied” Error with kubectl Command

Encountering the error below while using the kubectl command:

error: error loading config file "/etc/rancher/k3s/k3s.yaml": open /etc/rancher/k3s/k3s.yaml: permission denied

Indicates the need for root access. Run the command with sudo, or log in as the root user.

kubectl: command not found error

If you encounter the error below while using the kubectl command:

kubectl: command not found

The solution is to use the full path to the kubectl binary. You can do this by prefixing the command with /usr/local/bin/ (for RHEL and other Linux systems), or /opt/bin/ (for flatcar) or by adding it to your PATH environment variable:

/usr/local/bin/kubectl get pods -n united-manufacturing-hub

# or

export PATH=$PATH:/usr/local/bin

Viewing Pod Logs for Troubleshooting

Logs are essential for diagnosing and understanding the behavior of your applications and infrastructure. Here’s how to view logs for key components:

  • Management Companion Logs: To view the real-time logs of the Management Companion, use the following command. This can be helpful for monitoring the Companion’s activities or troubleshooting issues.

    sudo $(which kubectl) logs -f mgmtcompanion-0 -n mgmtcompanion --kubeconfig /etc/rancher/k3s/k3s.yaml

  • TimescaleDB Logs: For real-time logging of the TimescaleDB, execute this command. It’s useful for tracking database operations and identifying potential issues.

    sudo $(which kubectl) logs -f united-manufacturing-hub-timescaledb-0 -n united-manufacturing-hub --kubeconfig /etc/rancher/k3s/k3s.yaml


Restarting a Pod for Troubleshooting

Sometimes, the most straightforward troubleshooting method is to restart a problematic pod. Here’s how to restart specific pods:

  • Restart Management Companion: If you encounter issues with the Management Companion, restart it with this command:

    sudo $(which kubectl) delete pod mgmtcompanion-0 -n mgmtcompanion --kubeconfig /etc/rancher/k3s/k3s.yaml

  • Restart TimescaleDB: Should TimescaleDB exhibit unexpected behavior, use the following command to restart it:

    sudo $(which kubectl) delete pod united-manufacturing-hub-timescaledb-0 -n united-manufacturing-hub --kubeconfig /etc/rancher/k3s/k3s.yaml


Troubleshooting Redpanda / Kafka

For insights into your Kafka streams managed by Redpanda, these commands are invaluable:

  • List All Topics: To get an overview of all topics in your Redpanda cluster:

    sudo $(which kubectl) exec -it --kubeconfig /etc/rancher/k3s/k3s.yaml -n united-manufacturing-hub  united-manufacturing-hub-kafka-0 -- rpk topic list

  • Describe a Specific Topic: For detailed information about a specific topic, such as umh.v1.e2e-enterprise.aachen.packaging, use:

    sudo $(which kubectl) exec -it --kubeconfig /etc/rancher/k3s/k3s.yaml -n united-manufacturing-hub united-manufacturing-hub-kafka-0 -- rpk topic describe umh.v1.e2e-enterprise.aachen.packaging

  • Consume Messages from a Topic: To view messages from a topic like umh.v1.e2e-enterprise.aachen.packaging, this command is useful for real-time data observation:

    sudo $(which kubectl) exec -it --kubeconfig /etc/rancher/k3s/k3s.yaml -n united-manufacturing-hub united-manufacturing-hub-kafka-0 -- rpk topic consume umh.v1.e2e-enterprise.aachen.packaging


What’s next?

Now that you have learned how to monitor, manage and configure your UMH instance with the Management Console, you can start creating your first data flow. To learn how to do this, proceed to the Data Acquisition and Manipulation chapter.
